SRQ Fab Hybrid Front Bumper - DIY Kit For 4Runner (2003-2009)
Overview:

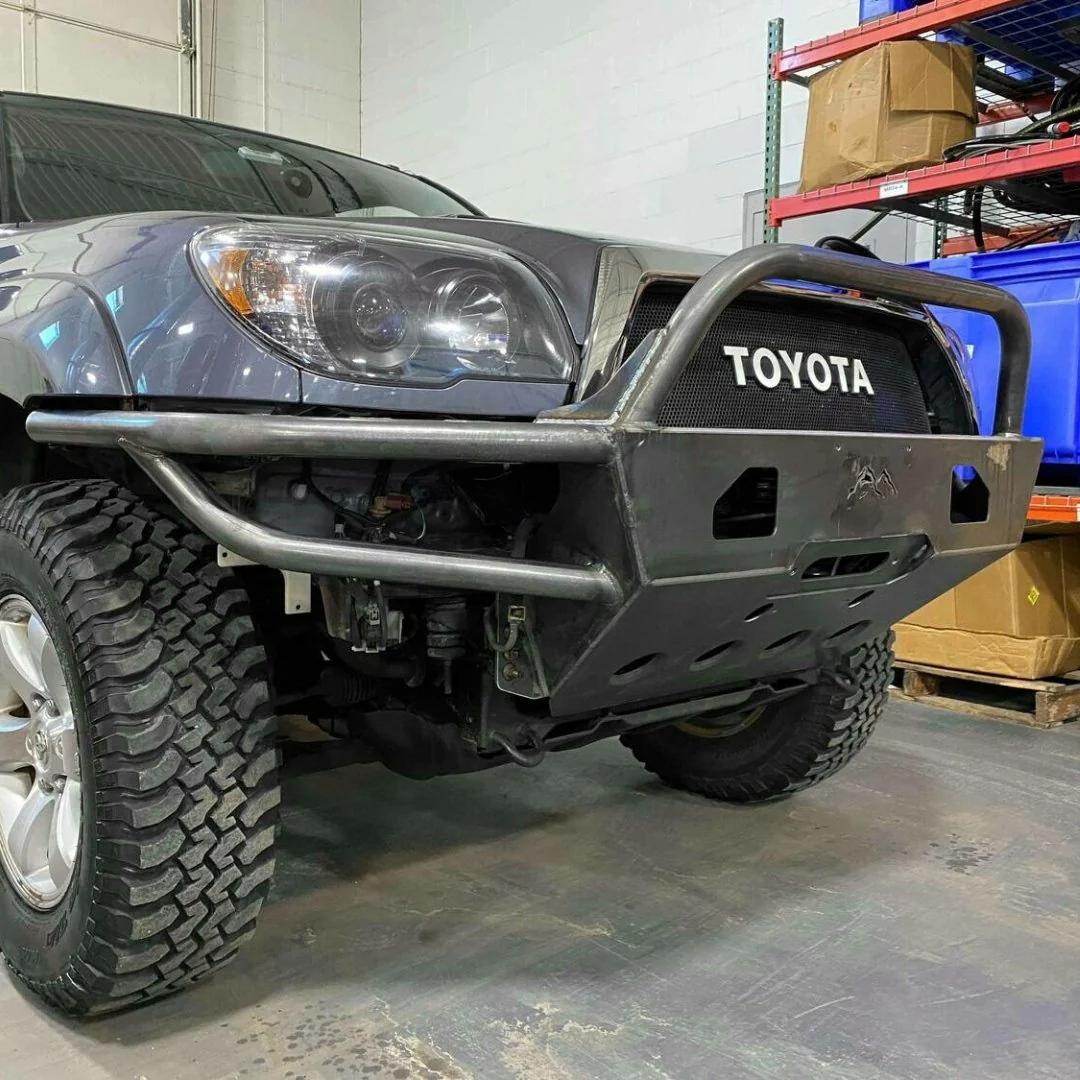

The Hybrid Front Bumper DIY Kit for 4th Gen 4Runners is a weld-together bumper kit designed for serious off-road builds. Its hybrid steel design delivers strength with reduced weight and optimized approach angles, while simplifying fabrication with laser-cut, tabbed construction.
– Laser-cut, tabbed/slotted kit for easy assembly and alignment
– Hybrid plate/tube design maximizes clearance and strength
– Integrated winch mount and auxiliary lighting support
– Frame-mounted with oversized adjustable hardware
– Designed for Warn M8000 winch with centered fairlead
Specifications:
– Main body: 11-gauge HRPO steel
– Vertical supports: 1/4" HRPO steel
– Tubing: 1.75" OD 11-gauge ERW steel
– Winch pattern: 10" x 4.5", centered fairlead
– Approximate weight: 90 lbs (plus optional grille guard tubing)
Fitment:
2003–2009 Toyota 4Runner
Notes:
Ships as raw, individual steel components. Requires welding and finishing. Not compatible with body lifts without a visible gap. Frame-mounted recovery points required for winching—available separately. Grille guard tubing is uncoped and oversized. Minor surface blemishes may be present. For off-road use only.
Description
Overview:
The Hybrid Front Bumper DIY Kit for 4th Gen 4Runners is a weld-together bumper kit designed for serious off-road builds. Its hybrid steel design delivers strength with reduced weight and optimized approach angles, while simplifying fabrication with laser-cut, tabbed construction.
– Laser-cut, tabbed/slotted kit for easy assembly and alignment
– Hybrid plate/tube design maximizes clearance and strength
– Integrated winch mount and auxiliary lighting support
– Frame-mounted with oversized adjustable hardware
– Designed for Warn M8000 winch with centered fairlead
Specifications:
– Main body: 11-gauge HRPO steel
– Vertical supports: 1/4" HRPO steel
– Tubing: 1.75" OD 11-gauge ERW steel
– Winch pattern: 10" x 4.5", centered fairlead
– Approximate weight: 90 lbs (plus optional grille guard tubing)
Fitment:
2003–2009 Toyota 4Runner
Notes:
Ships as raw, individual steel components. Requires welding and finishing. Not compatible with body lifts without a visible gap. Frame-mounted recovery points required for winching—available separately. Grille guard tubing is uncoped and oversized. Minor surface blemishes may be present. For off-road use only.
